JDM-502U
JDM-502U JDM-502U

JDM-502U

Product Attributes :

What's included:

1.) Receiver * 1

2.) Transmitting handheld microphone * 2

3.) AC adapter * 1

4.) Audio cable * 1

5.) AA battery * 4

6.) Manual

7.) Gift box

Product Description

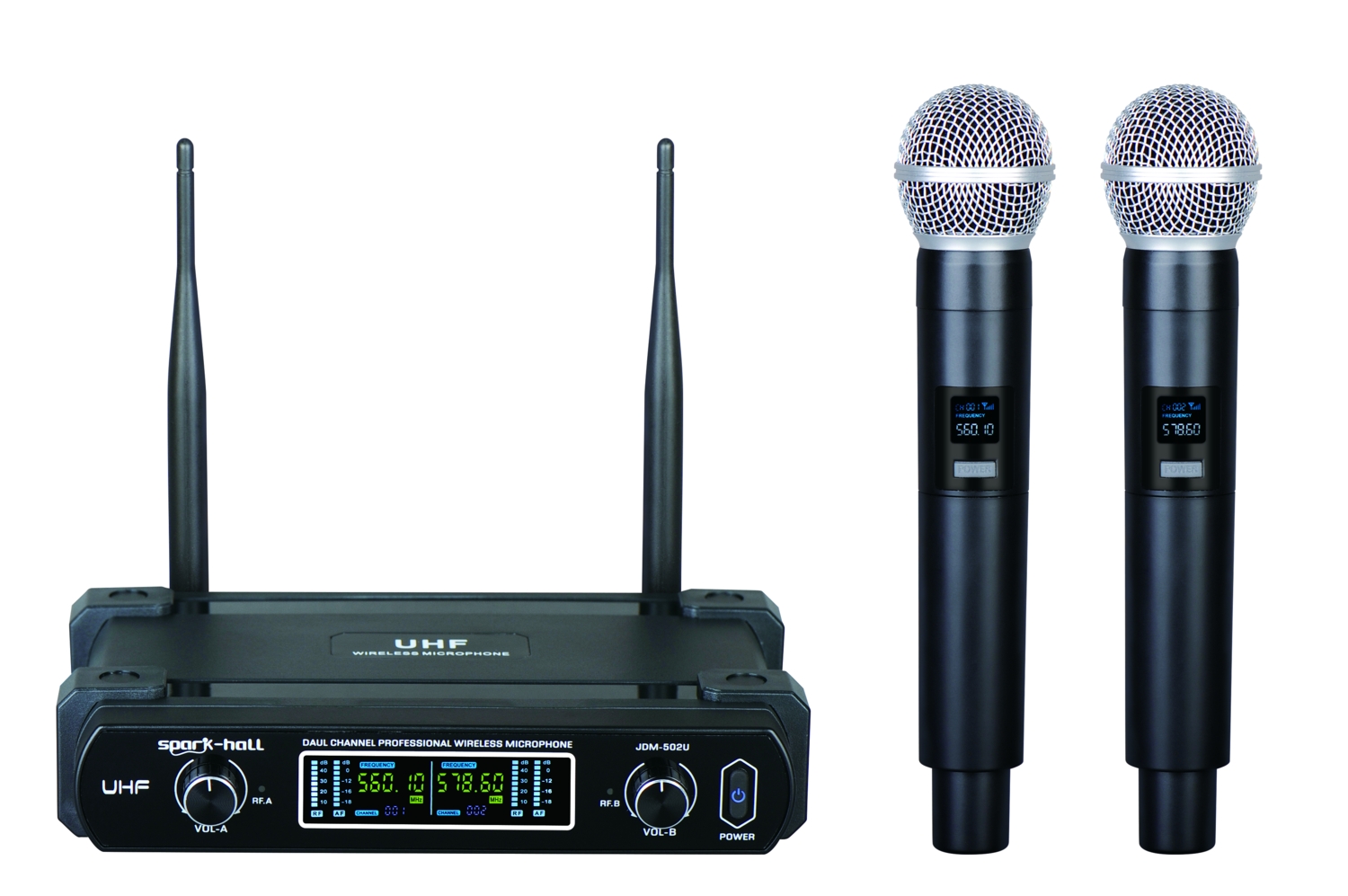

UHF Dual Wireless Microphone System

* With fixed frequency dual dynamic handheld microphone

* Good response range with low distortion

* Stable signal and clear sound

* Convenient use to plug and play



System Specification:

Transmitter:

Frequency locking: PLL

Frequency stability: ± 0.005%

Audio dynamic range: ≥ 102DB

Audio frequency response: 30HZ-18KHZ

Average wave ratio S/N RATIO:<- 60DBC

RF transmitter output: 10MW

Working current:<100MA

Battery: AA1.5V × 4

Receiver:

Frequency stability: ± 0.005%

Mirror frequency suppression:>80DB

S/N RATIO:>105DB(1KHZ)

Sensitivity: - 107DBM

Output impedance: 600 Ω

Audio output level: - 12DB

Power requirement: DC/12 -- 18.5V 500MA

Working voltage: 110 - 220V

Working distance:30-50 meters

Frequency range:500-700mhz
